FASTQ, FASTA, GTF, GFF, BAM, SAM, Loom 파일 이해하기
추천글 : 【생물정보학】 생물정보학 분석 목차
1. FASTQ 파일 [본문]
2. FASTA 파일 [본문]
3. GTF 파일 [본문]
4. GFF 파일 [본문]
5. BAM 파일 [본문]
6. SAM 파일 [본문]
7. Loom 파일 [본문]
1. FASTQ(fast-Q) [목차]
@SEQ_ID
GATTTGGGGTTCAAAGCAGTATCGATCAAATAGTAAATCCATTTGTTCAACTCACAGTTT
+
!''*((((***+))%%%++)(%%%%).1***-+*''))**55CCF>>>>>>CCCCCCC65
⑴ 샘플의 시퀀스 정보를 저장
⑵ 첫 번째 행 : SEQ_ID, 즉 @ + 시퀀스 식별자(sequence identifier) + 추가 설명(optional description)
① 예 1. @HWUSI-EAS100R:6:73:941:1973#0/1
| HWUSI-EAS100R | the unique instrument name |
| 6 | flowcell lane |
| 73 | tile number within the flowcell lane |
| 941 | 'x'-coordinate of the cluster within the tile |
| 1973 | 'y'-coordinate of the cluster within the tile |
| #0 | index number for a multiplexed sample (0 for no indexing) |
| /1 | the member of a pair, /1 or /2 (paired-end or mate-pair reads only) |
Table. 1. SEQ_ID 예시 (ref)
② 예 2. @EAS139:136:FC706VJ:2:2104:15343:197393 1:Y:18:ATCACG
| EAS139 | the unique instrument name |
| 136 | the run id |
| FC706VJ | the flowcell id |
| 2 | flowcell lane |
| 2104 | tile number within the flowcell lane |
| 15343 | 'x'-coordinate of the cluster within the tile |
| 197393 | 'y'-coordinate of the cluster within the tile |
| 1 | the member of a pair, 1 or 2 (paired-end or mate-pair reads only) |
| Y | Y if the read is filtered (did not pass), N otherwise |
| 18 | 0 when none of the control bits are on, otherwise it is an even number |
| ATCACG | index sequence |
Table. 2. SEQ_ID 예시 (ref)
⑶ 두 번째 행 : raw sequence
⑷ 세 번째 행 : "+" + (optional) 시퀀스 식별자
⑸ 네 번째 행 : 두 번째 행의 시퀀스에 대한 퀄리티 스코어(quality score)
① 퀄리티 스코어 Q = -log P (단, P는 error probability)
② ASCII 문자로 표현되며 raw sequence와 문자 개수가 동일함

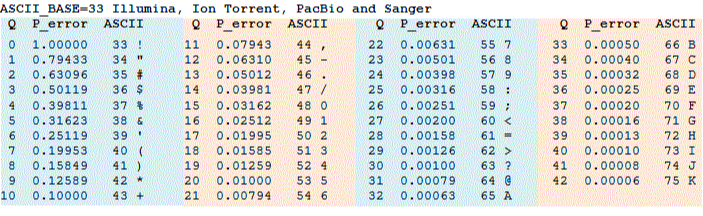

③ 종류 1. PHRED 33 encoding : 현재 대부분 사용되는 형식
Table. 3. PHRED 33 encoding

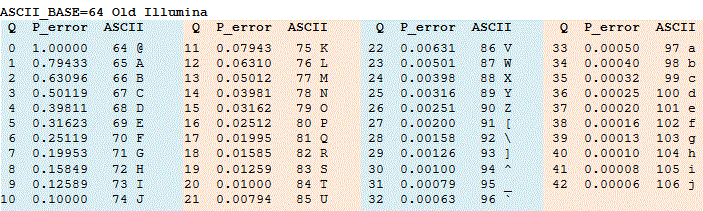

④ 종류 2. PHRED 64 encoding
Table. 4. PHRED 64 encoding
2. FASTA(fast-A) [목차]
⑴ 레퍼런스의 시퀀스 정보를 저장
⑵ 예 : GFP에 대한 FASTA 파일
>L29345.1 Aequorea victoria green-fluorescent protein (GFP) mRNA, complete cds
TACACACGAATAAAAGATAACAAAGATGAGTAAAGGAGAAGAACTTTTCACTGGAGTTGTCCCAATTCTT
GTTGAATTAGATGGCGATGTTAATGGGCAAAAATTCTCTGTCAGTGGAGAGGGTGAAGGTGATGCAACAT
ACGGAAAACTTACCCTTAAATTTATTTGCACTACTGGGAAGCTACCTGTTCCATGGCCAACACTTGTCAC
TACTTTCTCTTATGGTGTTCAATGCTTTTCAAGATACCCAGATCATATGAAACAGCATGACTTTTTCAAG
AGTGCCATGCCCGAAGGTTATGTACAGGAAAGAACTATATTTTACAAAGATGACGGGAACTACAAGACAC
GTGCTGAAGTCAAGTTTGAAGGTGATACCCTTGTTAATAGAATCGAGTTAAAAGGTATTGATTTTAAAGA
AGATGGAAACATTCTTGGACACAAAATGGAATACAACTATAACTCACATAATGTATACATCATGGCAGAC
AAACCAAAGAATGGAATCAAAGTTAACTTCAAAATTAGACACAACATTAAAGATGGAAGCGTTCAATTAG
CAGACCATTATCAACAAAATACTCCAATTGGCGATGGCCCTGTCCTTTTACCAGACAACCATTACCTGTC
CACACAATCTGCCCTTTCCAAAGATCCCAACGAAAAGAGAGATCACATGATCCTTCTTGAGTTTGTAACA
GCTGCTGGGATTACACATGGCATGGATGAACTATACAAATAAATGTCCAGACTTCCAATTGACACTAAAG
TGTCCGAACAATTACTAAATTCTCAGGGTTCCTGGTTAAATTCAGGCTGAGACTTTATTTATATATTTAT
AGATTCATTAAAATTTTATGAATAATTTATTGATGTTATTAATAGGGGCTATTTTCTTATTAAATAGGCT
ACTGGAGTGTAT
3. GTF(gene transfer format) [목차]
⑴ 레퍼런스의 annotation 정보를 저장
⑵ 예 : MUC1 유전자 및 한 개의 transcript에 대한 GTF 파일 내용
NC_000001.11 BestRefSeq gene 155185824 155192915 . - . gene_id "MUC1"; transcript_id ""; db_xref "GeneID:4582"; db_xref "HGNC:HGNC:7508"; db_xref "MIM:158340"; description "mucin 1, cell surface associated"; gbkey "Gene"; gene "MUC1"; gene_biotype "protein_coding"; gene_synonym "ADMCKD"; gene_synonym "ADMCKD1"; gene_synonym "ADTKD2"; gene_synonym "CA 15-3"; gene_synonym "Ca15-3"; gene_synonym "CD227"; gene_synonym "EMA"; gene_synonym "H23AG"; gene_synonym "KL-6"; gene_synonym "MAM6"; gene_synonym "MCD"; gene_synonym "MCKD"; gene_synonym "MCKD1"; gene_synonym "MUC-1"; gene_synonym "MUC-1/SEC"; gene_synonym "MUC-1/X"; gene_synonym "MUC1/ZD"; gene_synonym "PEM"; gene_synonym "PEMT"; gene_synonym "PUM";
NC_000001.11 BestRefSeq transcript 155185824 155192915 . - . gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "GeneID:4582"; gbkey "mRNA"; gene "MUC1"; product "mucin 1, cell surface associated, transcript variant 15"; transcript_biotype "mRNA";
NC_000001.11 BestRefSeq exon 155192786 155192915 . - . gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "GeneID:4582"; gene "MUC1"; product "mucin 1, cell surface associated, transcript variant 15"; transcript_biotype "mRNA"; exon_number "1";
NC_000001.11 BestRefSeq exon 155192183 155192310 . - . gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "GeneID:4582"; gene "MUC1"; product "mucin 1, cell surface associated, transcript variant 15"; transcript_biotype "mRNA"; exon_number "2";
NC_000001.11 BestRefSeq exon 155188008 155188063 . - . gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "GeneID:4582"; gene "MUC1"; product "mucin 1, cell surface associated, transcript variant 15"; transcript_biotype "mRNA"; exon_number "3";
NC_000001.11 BestRefSeq exon 155187722 155187858 . - . gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "GeneID:4582"; gene "MUC1"; product "mucin 1, cell surface associated, transcript variant 15"; transcript_biotype "mRNA"; exon_number "4";
NC_000001.11 BestRefSeq exon 155187455 155187576 . - . gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "GeneID:4582"; gene "MUC1"; product "mucin 1, cell surface associated, transcript variant 15"; transcript_biotype "mRNA"; exon_number "5";
NC_000001.11 BestRefSeq exon 155187225 155187374 . - . gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "GeneID:4582"; gene "MUC1"; product "mucin 1, cell surface associated, transcript variant 15"; transcript_biotype "mRNA"; exon_number "6";
NC_000001.11 BestRefSeq exon 155185824 155186209 . - . gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "GeneID:4582"; gene "MUC1"; product "mucin 1, cell surface associated, transcript variant 15"; transcript_biotype "mRNA"; exon_number "7";
NC_000001.11 BestRefSeq CDS 155192786 155192843 . - 0 gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "CCDS:CCDS72934.1"; db_xref "GeneID:4582"; gbkey "CDS"; gene "MUC1"; note "isoform 15 precursor is encoded by transcript variant 15"; product "mucin-1 isoform 15 precursor"; protein_id "NP_001191220.1"; exon_number "1";
NC_000001.11 BestRefSeq CDS 155192183 155192310 . - 2 gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "CCDS:CCDS72934.1"; db_xref "GeneID:4582"; gbkey "CDS"; gene "MUC1"; note "isoform 15 precursor is encoded by transcript variant 15"; product "mucin-1 isoform 15 precursor"; protein_id "NP_001191220.1"; exon_number "2";
NC_000001.11 BestRefSeq CDS 155188008 155188063 . - 0 gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "CCDS:CCDS72934.1"; db_xref "GeneID:4582"; gbkey "CDS"; gene "MUC1"; note "isoform 15 precursor is encoded by transcript variant 15"; product "mucin-1 isoform 15 precursor"; protein_id "NP_001191220.1"; exon_number "3";
NC_000001.11 BestRefSeq CDS 155187722 155187858 . - 1 gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "CCDS:CCDS72934.1"; db_xref "GeneID:4582"; gbkey "CDS"; gene "MUC1"; note "isoform 15 precursor is encoded by transcript variant 15"; product "mucin-1 isoform 15 precursor"; protein_id "NP_001191220.1"; exon_number "4";
NC_000001.11 BestRefSeq CDS 155187455 155187576 . - 2 gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "CCDS:CCDS72934.1"; db_xref "GeneID:4582"; gbkey "CDS"; gene "MUC1"; note "isoform 15 precursor is encoded by transcript variant 15"; product "mucin-1 isoform 15 precursor"; protein_id "NP_001191220.1"; exon_number "5";
NC_000001.11 BestRefSeq CDS 155187225 155187374 . - 0 gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "CCDS:CCDS72934.1"; db_xref "GeneID:4582"; gbkey "CDS"; gene "MUC1"; note "isoform 15 precursor is encoded by transcript variant 15"; product "mucin-1 isoform 15 precursor"; protein_id "NP_001191220.1"; exon_number "6";
NC_000001.11 BestRefSeq CDS 155186138 155186209 . - 0 gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "CCDS:CCDS72934.1"; db_xref "GeneID:4582"; gbkey "CDS"; gene "MUC1"; note "isoform 15 precursor is encoded by transcript variant 15"; product "mucin-1 isoform 15 precursor"; protein_id "NP_001191220.1"; exon_number "7";
NC_000001.11 BestRefSeq start_codon 155192841 155192843 . - 0 gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "CCDS:CCDS72934.1"; db_xref "GeneID:4582"; gbkey "CDS"; gene "MUC1"; note "isoform 15 precursor is encoded by transcript variant 15"; product "mucin-1 isoform 15 precursor"; protein_id "NP_001191220.1"; exon_number "1";
NC_000001.11 BestRefSeq stop_codon 155186135 155186137 . - 0 gene_id "MUC1"; transcript_id "NM_001204291.1"; db_xref "CCDS:CCDS72934.1"; db_xref "GeneID:4582"; gbkey "CDS"; gene "MUC1"; note "isoform 15 precursor is encoded by transcript variant 15"; product "mucin-1 isoform 15 precursor"; protein_id "NP_001191220.1"; exon_number "7";
① NM_000001.11 : 레퍼런스의 accession number. "NM_000001"은 1번 염색체를, ".11"은 11번째 버전을 의미함
② BestRefSeq, RefSeq, Gnomon, HAVANA 등 : 레퍼런스 종류
③ GTF의 각 행은 gene, transcript, exon, CDS, domain, group, start_codon, stop_codon 등이 있음
④ 첫 행의 155185825, 155192915는 FASTA 내 155185825번째 염기부터 155192915번째 염기가 MUC1 유전자라는 의미
⑤ +, - : (+)는 forward (= plus, sense) strand에 유전자가 있음을, (-)는 reverse (= minus, antisense) strand에 유전자가 있음
⑥ 0, 1, 2 : CDS에 있는 0, 1, 2는 각각 feature의 1, 2, 3번째 염기가 해독틀의 1번째 코돈이라는 의미
⑦ 하나의 gene에는 하나 이상의 transcript가 있음 : gene과 transcript는 gene_id, gene 등을 통해 서로 연결됨
⑧ 각 transcript에는 여러 개의 exon 수식 부위가 있음 : transcript와 exon은 transcript_id를 통해 서로 연결됨
⑨ CDS(protein coding sequence)는 일반적으로 exon의 부분집합 : 그마저도 CDS = exon인 부분이 상당히 많음
⑩ start_codon, stop_codon이 없는 유전자도 있음 (e.g., LOC102724389)
4. GFF(general feature format) [목차]
⑴ 개요
① 레퍼런스의 annotation 정보를 저장. GTF와 약간의 형식 차이가 있음
② gene_id와 transcript_id 사이의 계층 관계는 GFF에서 보존되지 않음
import sys
inFile = open(sys.argv[1],'r')
for line in inFile:
#skip comment lines that start with the '#' character
if line[0] != '#':
#split line into columns by tab
data = line.strip().split('\t')
#parse the transcript/gene ID. I suck at using regex, so I usually just do a series of splits.
transcriptID = data[-1].split('transcript_id')[-1].split(';')[0].strip()[1:-1]
geneID = data[-1].split('gene_id')[-1].split(';')[0].strip()[1:-1]
#replace the last column with a GFF formatted attributes columns
#I added a GID attribute just to conserve all the GTF data
data[-1] = "ID=" + transcriptID + ";GID=" + geneID
#print out this new GFF line
print '\t'.join(data)
import sys
inFile = open(sys.argv[1],'r')
for line in inFile:
#skip comment lines that start with the '#' character
if line[0] != '#':
#split line into columns by tab
data = line.strip().split('\t')
ID = ''
#if the feature is a gene
if data[2] == "gene":
#get the id
ID = data[-1].split('ID=')[-1].split(';')[0]
#if the feature is anything else
else:
# get the parent as the ID
ID = data[-1].split('Parent=')[-1].split(';')[0]
#modify the last column
data[-1] = 'gene_id "' + ID + '"; transcript_id "' + ID
#print out this new GTF line
print '\t'.join(data)
5. BAM(binary alignment map) [목차]
⑴ FASTQ 파일을 reference 파일(e.g., GTF)에 맵핑한 결과를 저장하는 파일
6. SAM(sequence alignment/MAP format) [목차]
⑴ BAM 파일을 SAMtools view로 보고 sorting / selection한 결과를 생성하는 파일
⑵ 해석 : 다음과 같은 행이 계속 줄지어 있음
QNAME (Query template NAME) FLAG RNAME (Reference sequence NAME) POS (1-based leftmost mapping Position) MAPQ (Mapping Quality) CIGAR (Concise Idiosyncratic Gapped Alignment Report) string RNEXT PNEXT TLEN (observed Template LENgth) SEQ (segment SEQuence) QUAL (quality) The number of reported alignments that contain the read. The hit index. Alignment score. Number of mismatches. An additional tag, possibly specific to the aligner or analysis pipeline. Read group identifier. Tags related to the gene or transcript the read is aligned to 'tdtomato'. An additional flag used by specific software. ....20 ....21 ....22 ....23 ....24 ....25 ....26 ....27 ....28 ....29 ...30
A01192:688:HM3FVDMXY:1:2117:20374:35023 1024 tdtomato 1438 255 30S40M20S * 0 0 AAGCAGTGGTATCAACGCAGAGTACATGGGATCACCTGTTCCTGTACGGCATGGATGAGCTGTACAAGTGAGCTGCCTTCTGCGGGGCTT FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF NH:i:1 HI:i:1 AS:i:39 nM:i:0 ts:i:30 RG:Z:CR_23_15103_TS_R_SSV_1:0:1:HM3FVDMXY:1 TX:Z:tdtomato,+1437,30S40M20S GX:Z:tdtomato GN:Z:tdtomato fx:Z:tdtomato RE:A:E xf:i:17 CR:Z:CGGGCAGCTAAACCGC CY:Z:FFFFFFFFFFFFFFFF CB:Z:CGGGCAGCTAAACCGC-1 UR:Z:AATCAGTTATGC UY:Z:FFFFFF,:FFFF UB:Z:AATCAGTTATGC NA
① QNAME (Query template NAME)
② FLAG
③ RNAME (Reference sequence NAME) : chr1, chr2 chrM 등
④ POS (1-based leftmost mapping Position)
⑤ MAPQ (Mapping Quality)
⑥ CIGAR (Concise Idiosyncratic Gapped Alignment Report) string
Op BAM Description
M 0 alignment match (can be a sequence match or mismatch)
I 1 insertion to the reference
D 2 deletion from the reference
N 3 skipped region from the reference
S 4 soft clipping (clipped sequences present in SEQ)
H 5 hard clipping (clipped sequences NOT present in SEQ)
P 6 padding (silent deletion from padded reference)
= 7 sequence match
X 8 sequence mismatch
⑦ RNEXT
⑧ PNEXT
⑨ TLEN (observed Template LENgth)
⑩ SEQ (segment SEQuence)
⑪ QUAL (quality)
⑫ NH:i : The number of reported alignments that contain the read.
⑬ HI:i : The hit index.
⑭ AS:i : Alignment score.
⑮ nM:i : Number of mismatches.
⑯ ts:i : An additional tag, possibly specific to the aligner or analysis pipeline.
⑰ RG:Z : Read group identifier.
⑱ TX:Z, GX:Z, GN:Z, fx:Z : Tags related to the gene or transcript the read is aligned to your query.
○ GN:Z : gene name tag
⑲ xf:i : An additional flag used by specific software.
⑳ CR:Z, CY:Z, UR:Z, UY:Z, UB:Z : Fields related to cell barcodes and unique molecular identifiers (UMIs), which are important in single-cell sequencing technologies.
7. Loom (.loom) [목차]
⑴ gene expression data : .h5 파일의 내용
⑵ (optional) layer for spliced and unspliced RNA transcripts : RNA velocity-aware tool을 쓴 경우
⑶ (optional) layer for cell metadata
⑷ (optional) layer for gene metadata
